Boardtech Design House Projects Portfolio

A selection of boards and systems designed and delivered by BOARDTECH — medical, avionic, military, aerospace, video and power electronics. Click any image to enlarge.

Coffee Lake CPU Motherboard

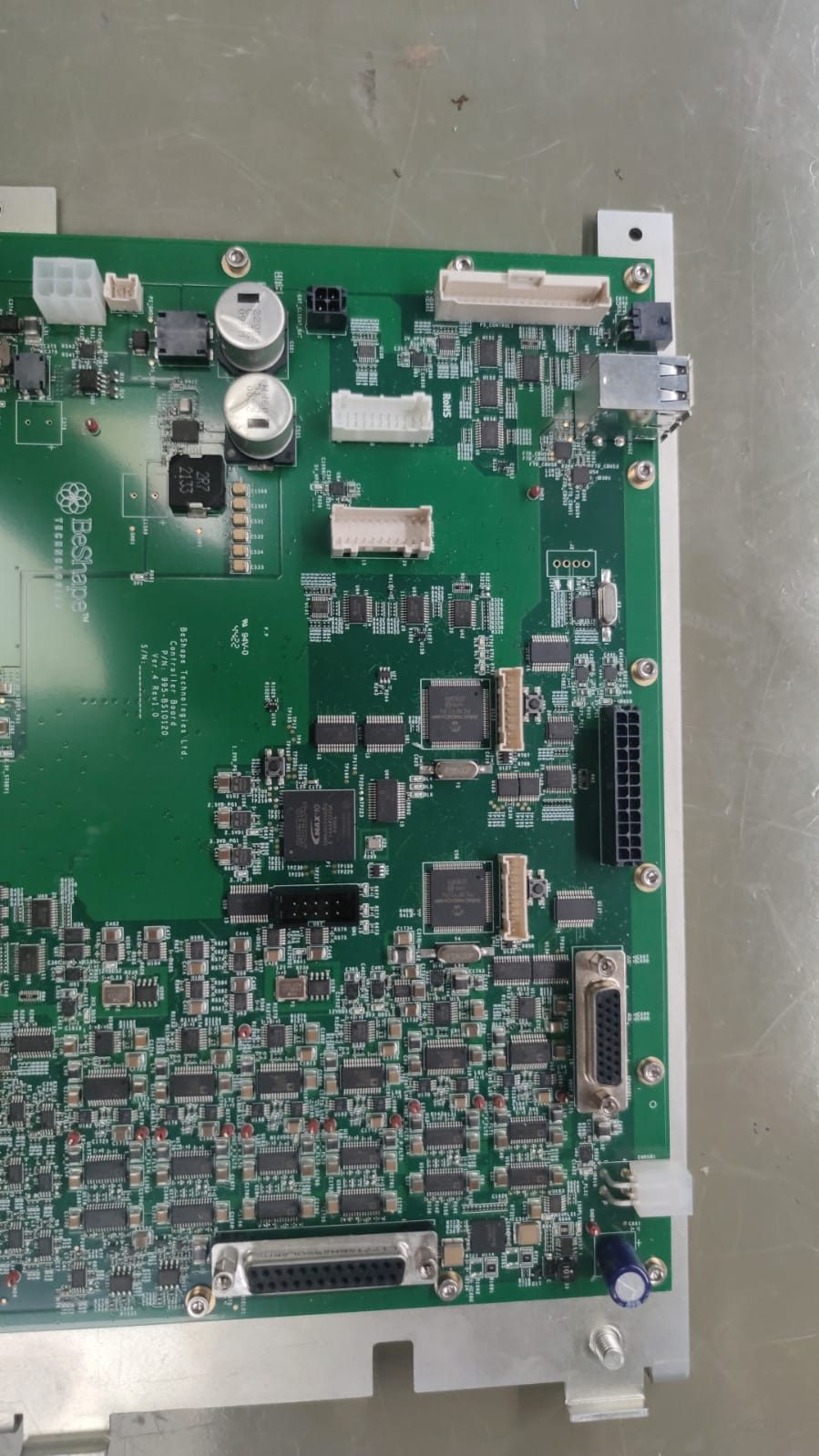

Body Shaping and Skin Tightening System High Speed, Ultrasound, Analog and Digital Main CPU Board
Aerospace missile defence laser system controller High speed signal and power integrity using ZYNQ US+ SOC, 6×16Gb DDR4, IMU, 64Gb Flash, CPLD, 1TB PCIe SSD, MIPI video interface, Gigabit ethernet communication, core voltage 50A power supply, motors interface, BIT, aircraft discretes support.

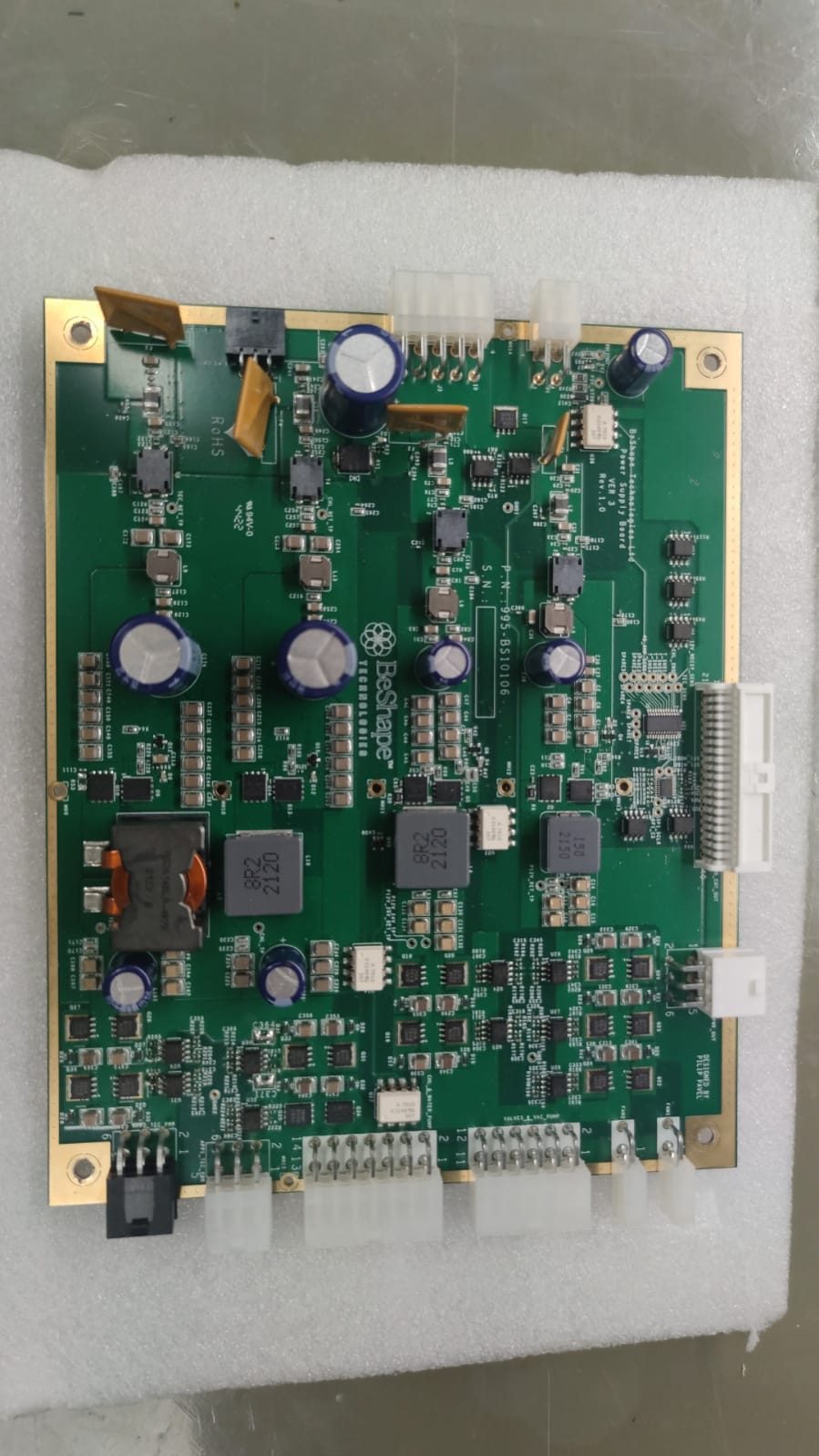

Body Shaping and Skin Tightening System High Power, Very Low Noise, High Accuracy, Multi Channel Power Supply

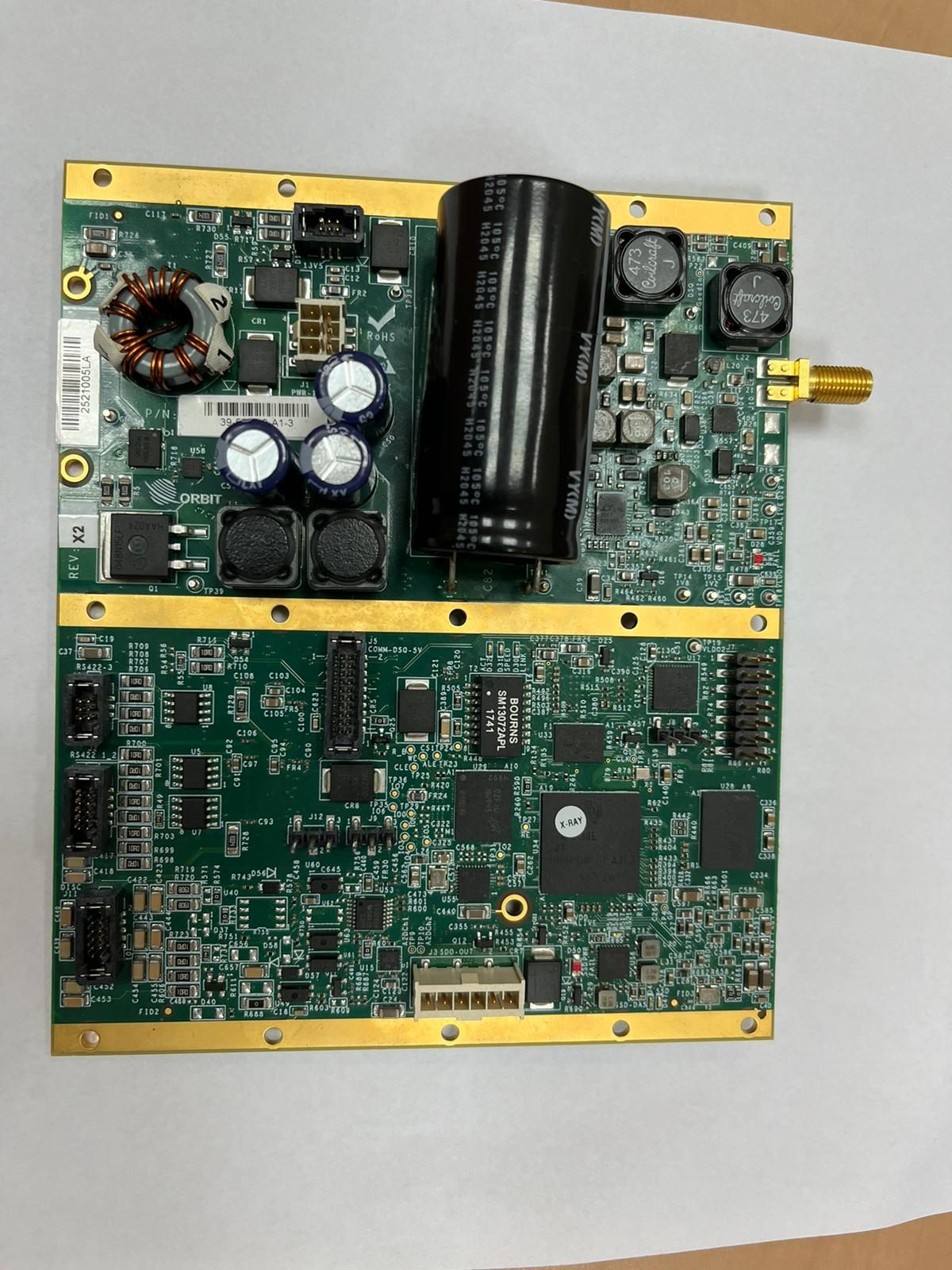

Avionic, Satellite Communication System CPU High Speed, High Density Board
Avionic, Satellite Communication System Sensitive Signals Filter and Lightning Protection, DO-160 Support Board

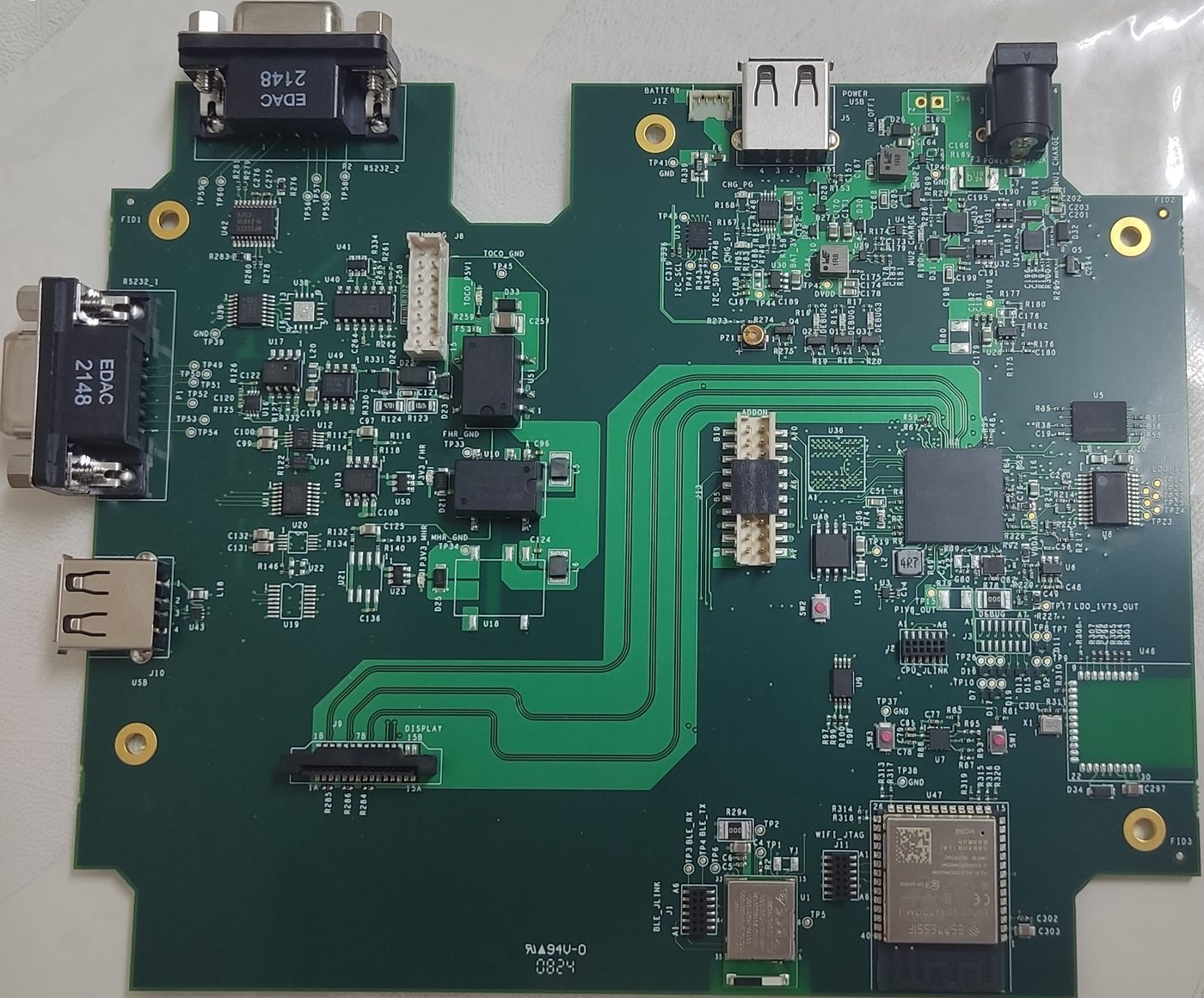

Video signals grabber Ultra high speed MIPI bus, ultra low noise, high resolution. Isolated analog signals processing. High speed and very high accuracy DDS module. Bluetooth 5.3 and WiFi support.

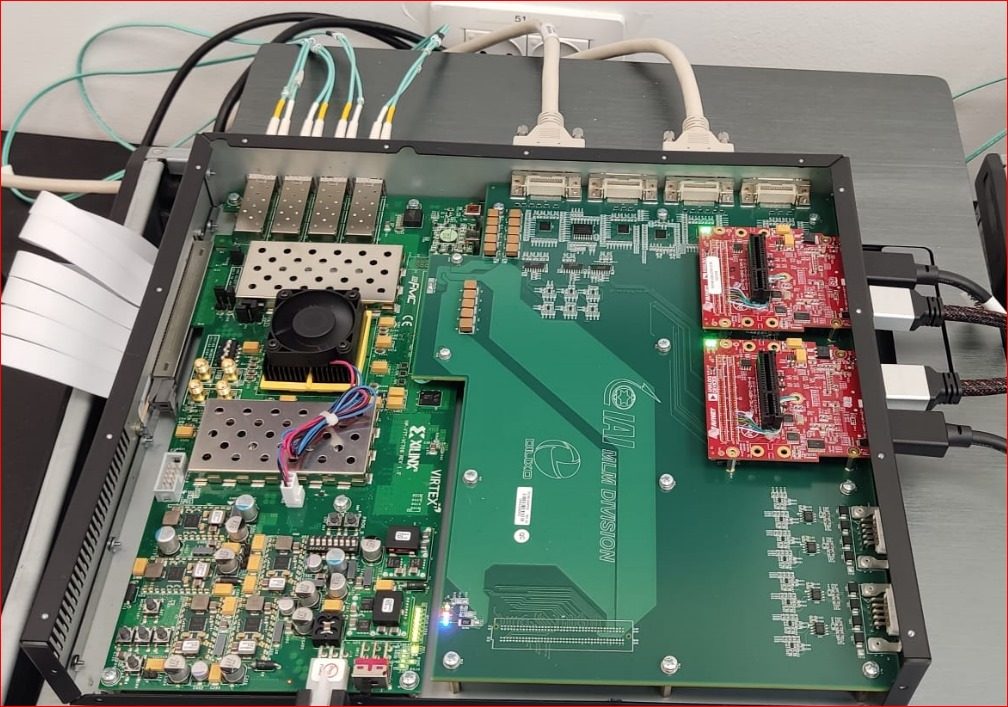

Military PC to HDMI and CameraLink Video Decoder and Grabber
Uterine and Fetal Monitoring System High Speed, Ultra High Density, Tiny Dimensions Digital Main CPU Board

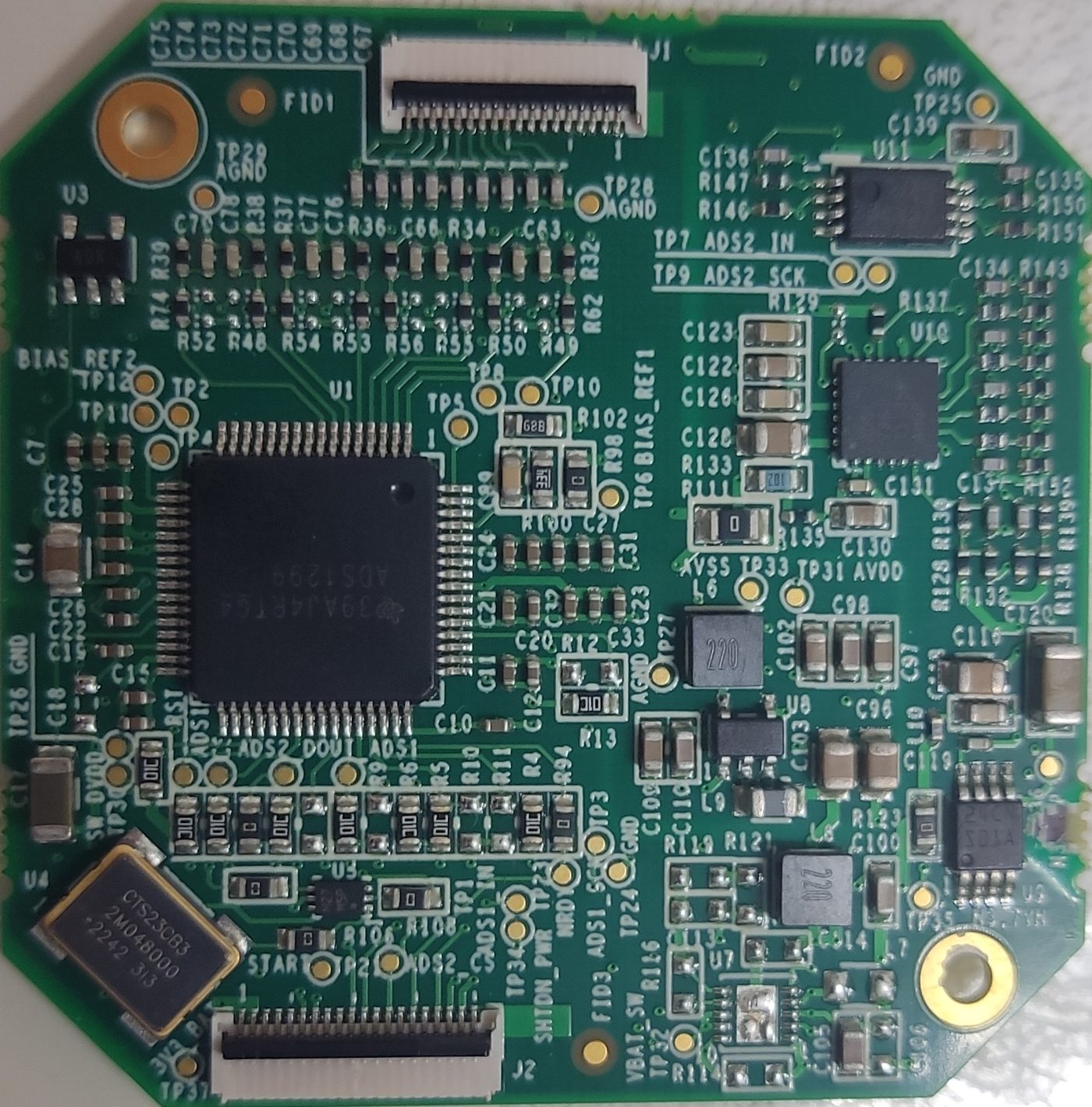

Uterine and Fetal Monitoring System ECG level sensitive signals, ultra low noise, high resolution, ultra high density, tiny dimensions — Analog Signal Processing Board

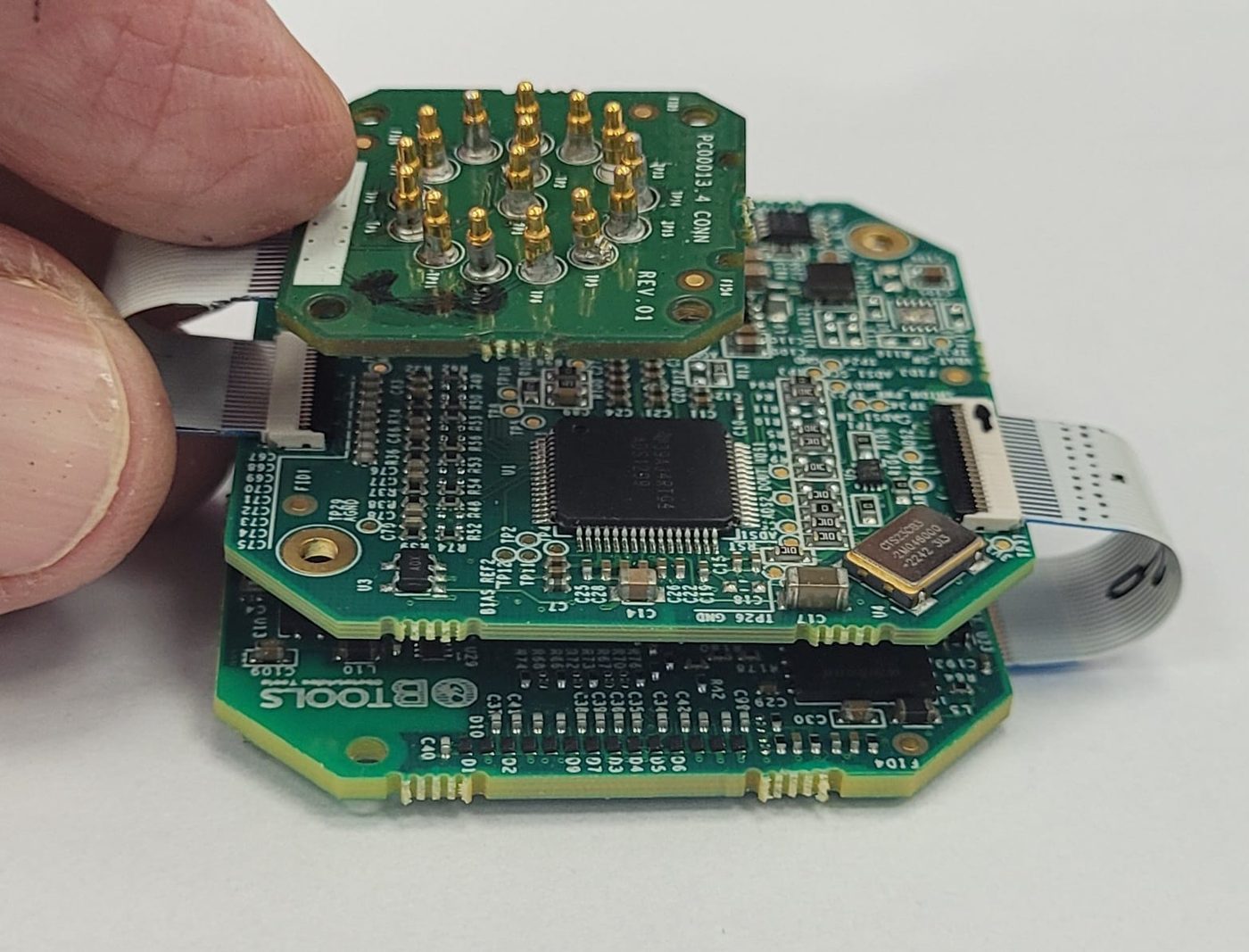

Uterine and Fetal Monitoring System Stack up

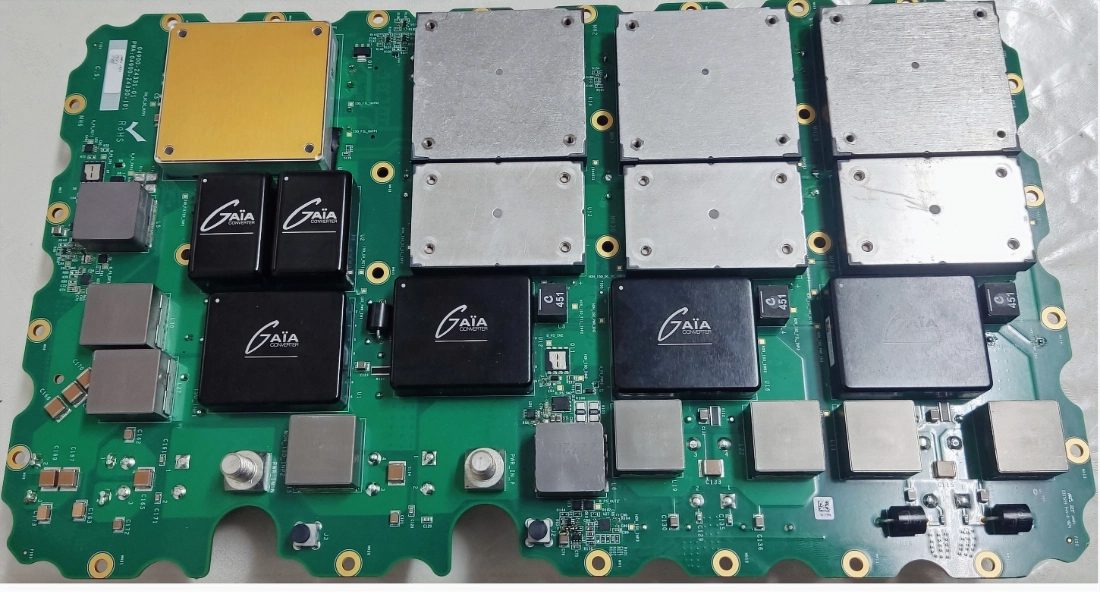

Power Distribution Unit — TOP SIDE 500W Isolated, 1000W Non Isolated and 200W Hold Up Backup Power Distribution Units. 15V–36V Input, 24V Ultra Low Noise and Redundant Output Voltage. Supports military standards: MIL-STD 461F, MIL-STD 1275B, MIL-STD 1275E, ACTP-500, ACTP-250, STANAG AEP-4133.

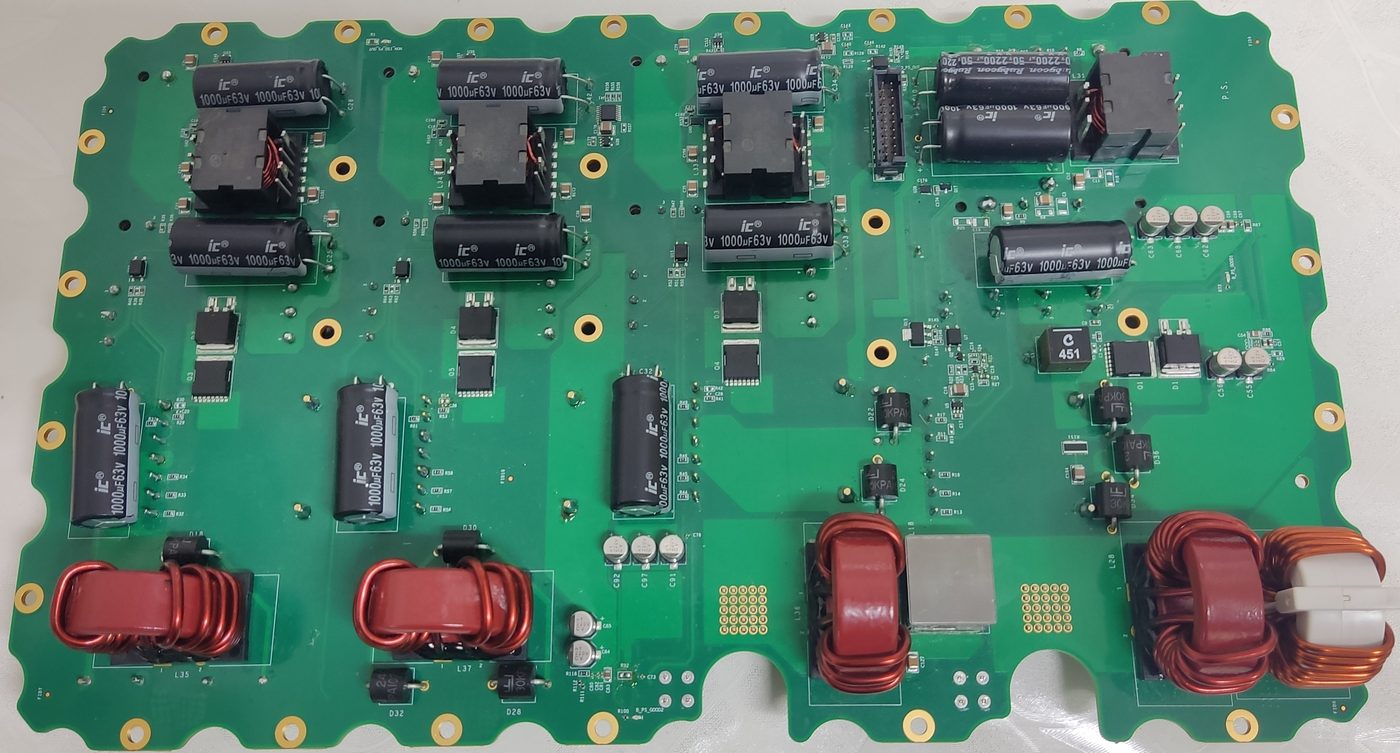

Power Distribution Unit — BOTTOM SIDE
